简介
QuickClean WBO is a high-performance mixer designed for light-duty applications where accessibility and hygiene are essential. Its innovative design, featuring a large lateral inspection door, makes it particularly suitable for food, animal feed, and chemical industries, where disinfection and contamination control are critical. A specialised drive unit enables single-sided rotor support, simplifying chamber access and improving cleaning efficiency. Optimised for free-flowing recipes with bulk densities of up to 1 kg/dm³, FlexiClean WBO delivers exceptional mixing speed and quality, ensuring reliable performance in precision-driven production environments.
技术参数
描述

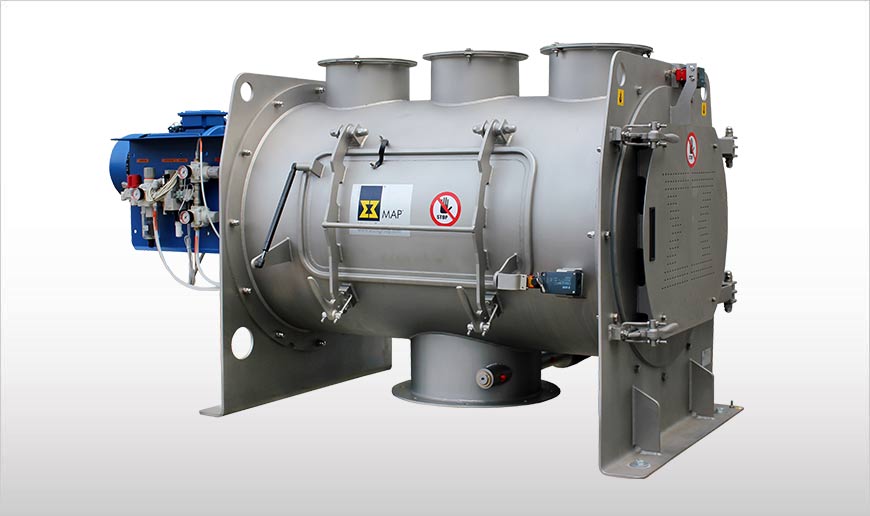

The QuickClean WBO Single-shaft Mixer features a mixing drum with one or more inlet spouts, a venting spout, and an outlet with a discharge valve. It includes a full-material mixing shaft, a drum-closing end plate at the drive end with a flanged end bearing assembly, and integrated air or gas-purged shaft seals. The drive unit is equipped with a power transmission system.

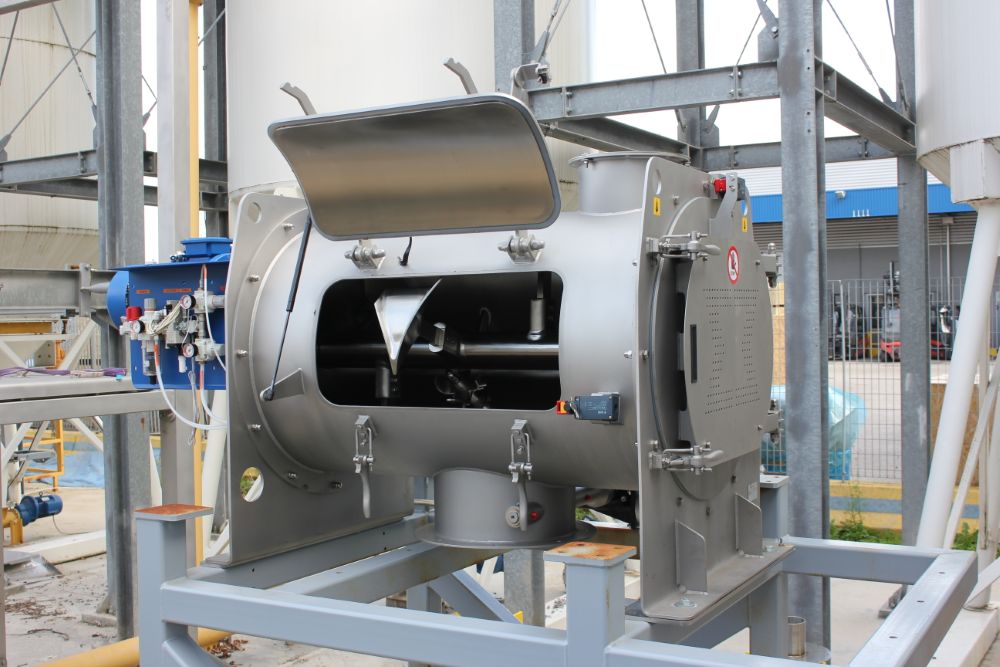

At the opposite end, the machine has a front cover plate with an integrated inspection door. Ploughshare or inclined blade-type shovels are arranged on the mixer shaft within a horizontal, cylindrical chamber, creating turbulence that ensures all product particles remain engaged in the mixing process. This prevents dead spots or slow-movement zones, guaranteeing precise mixing. Where required, separately driven high-speed choppers can be installed to achieve the desired mixing effect.
功能
The QuickClean WBO Horizontal Single-shaft Industrial Batch Mixer operates on the principle of mechanical fluidisation. The specific shape, position, and rotation speed of the mixing tools create a centrifugal vortex motion, projecting materials in a three-dimensional pattern and ensuring thorough blending. This allows ingredients with varying particle sizes and bulk densities to be mixed with high precision in the shortest possible time. FlexiClean WBO Batch Mixers are used for mixing dry powders, granules, or short fibres, as well as for moistening, agglomerating, or granulating these materials.
产品特点
- Capacity: 20 ~ 770 litres per batch
- Drive unit: 220/240 – 380/420 V, 50 Hz; 440/480 V, 60 Hz
- Ploughshare or blade-type tools
- Air or gas-purged end bearing assemblies
- Central outlet with discharge valve
- Chamber and mixing shaft manufactured from carbon steel or 304L or 316L stainless steel
- Machine completely assembled and tested
- Revolution counter and temperature probe pre-equipment
- High level finish
- Wide range of accessories available
优势
- Excellent accessibility
- Minimum residue
- Reduced operating costs
- High mixing homogeneity
- Low power consumption
- Hygienic design
- Perfect solution for light-duty free-flowing mixtures
选项
- Bolted mixing tools or welded blades
- Choppers and injection wands
- Thermocouples on bearings and seals
- Thermoresistance on chamber
- Pneumatic control panel
- Junction box
- Knob on inlets
